Developed as a user-friendly consumable choice for of artificial intelligence system for cell and microorganism identification and calculation, such as CASA system and etc., the FixTek FM diagnostic slides can also be used with fully automated microscopy equipment such as cell counting system and AI cell diagnosis system, as well as for morphological & kinetic tests of algae & living microorganisms, and concentration tests of suspensions.

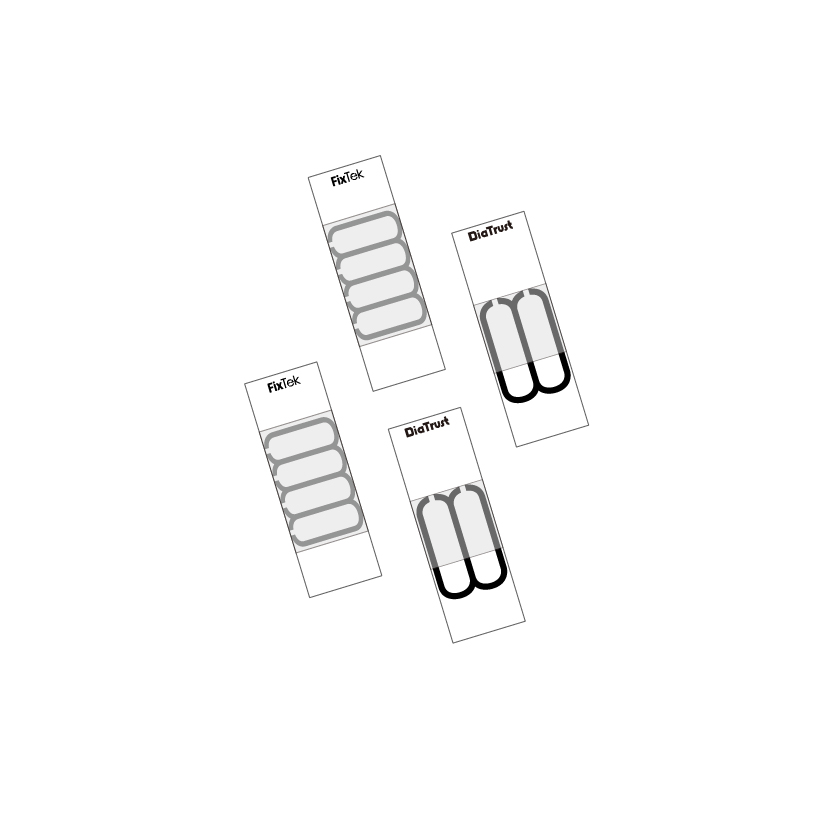

The slides feature a pre-fixed cover slip over the slide surface, and uniformly-thin chamber(s) between slide and cover slip. Drop the tested sample onto the side opening, the ultra-thin specimen chambers deliver an evenly-thin specimen film by capillary action.
· Dim.: 25.0mm×75.0mm. Optimally pre-cleaned, ready to use
· Ground Edges, 45° Clipped Corners
· Customized printing layouts are also available upon request
· 50pcs/box,1000pcs/case
Slide ID | P/N | Reaction Area | Background Color |
1500 | D116-0620-1500 | 2 | 60µm |
1501 | D116-0620-1501 | 2 | 20µm |
1502 | D116-0620-1502 | 2×6µL | / |
1503 | D116-0620-1503 | 4×3µL | / |
1504 | D116-0620-1504 | 8×2µL | / |
